Improvement in the quality and efficiency by improvement in the speed and automation.
NC program creation system for printed circuit board outside processing.
In recent years, rapid growth of electronic technology has a remarkable thing.
The printed circuit board design is also more complicated.
A processing machine tool also becomes more detailed and the accuracy of a product is also searched for for the level of the highest peak.

Router Vision is esteemed not only Japan but overseas. Please feel the wonderfulness of this system. It will surely be sure of the evaluation.

Router Vision is the CAM system which can make NC program for Router from the product external illustration. It enables you to make not only Router route automatically, but also drill data. In addition, Router Vision can execute the orthopedic operation for external object because it is equipped with Gerber edit function.

Router Vision can do based on Gerber data and can create the automatic processing data of a high standard in a short time.

Data Import

Outline data is imported.
Correspondence data is Gerber, NC, DXF data.

Set Router Tool

The router tool can be allocated in a rectangular inside slit or outline at the same time. and a finecut can be executed.

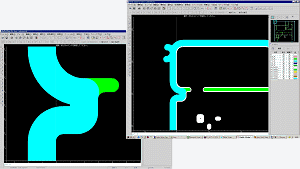

Make Router Path

The slit which exists on externals inside (the router layer is made a router route) is made a router route according to the allocation of the set router tool. And the fade In fade out (router) can be executed at the same time. The processing can be efficiently executed with the router machine.
Cross Hatch Cuts a clipped-off portion into lattice-like small pieces so that the NC processor could vacuum them easily.

Dissolve

Clips off a hole, not at once, but gradually from the center like drawing year rings, to process unique and fine patterns.

Simulation

The processing can be simulated on the screen, and the cutting order and time can be confirmed.

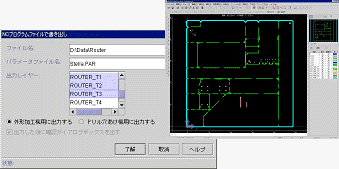

Export

The made router data is output as NC router data.
It is also possible to confirm the processing order by the simulation.

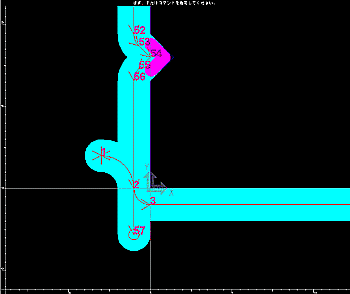

Fade in / Fade out
Processing route creation:

Data creation is created automatically below.


The fade-in fade-out route which finishes (1) Cutting at the beginning of the drill end, throws away (57) positions, and is missed to a substrate side can be created.

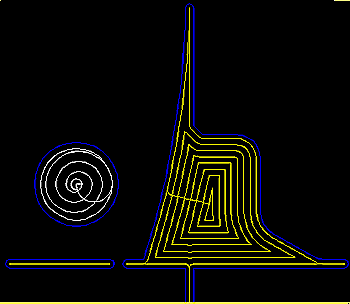

Spiral processing
Contour Line Hatch:

A clipping hole is leveled in the shape of annual rings from a center. Leveling processing of a variant hole can create easily.

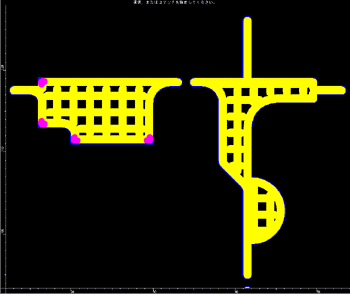

Cross Hatch / Fine cut
Cross Hatch in Router Path:

A parameter is read and data is created automatically.

1. Set up the size which clips with a parameter and can suck up a hole under the vacuum of NC processing machine.

The data which levels the inside of 2. in the shape of a lattice is created. (Refer to yellow lattice)

Fine cut data is created for 3. corner with the drill of a byway. (Refer to pink)

The data which levels 4. perimeter is created. (Refer to yellow of a blue border)

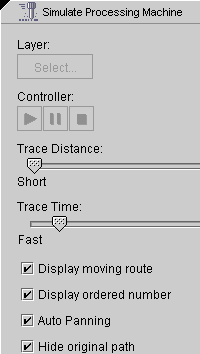

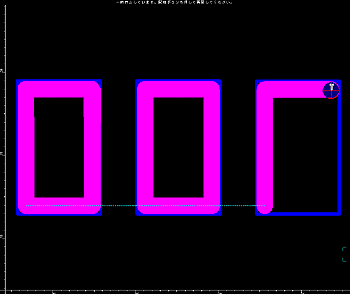

Simulate Processing Machine
By setting actual processing machine information as a parameter, false cutting of the created processing route can be carried out on a screen, and cutting turn and time can be checked.
