| Various Measuring Methods are: |
Line width
Distances between 2 or 3 points
Distances for multiple points
Diameter length
Arc
Angle
Other geometric figures |
 |
| Several Positioning Function |
| Supporting measuring methods i.e. relative and absolute references. |
 |
| Output Formats |
Results of measurement functions are delivered for use in
| CAD data files format |
| CSV format (comma separated values) |
| Printed in decimal form |
|
| CAD Data Function |
The image of the DUT is captured and patched together for a complete raster
image.
PolyLine functions generate together with coordinates, output data in machine
format, which in turn are basic CAD-data sets.
Overlaying the 2 Data sets in the display generates a visual inspection
station.
These functions do provide a rudimentary and basic reverse engineering
possibility, if original or source files are lost. |
 |
| Automatic Focus Function |

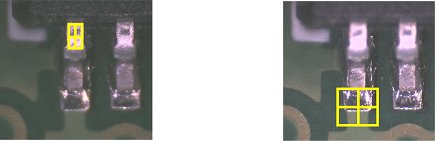

| ST600M provides Graphics Automatic Focus Function. The operator specifies
a sampling area and inside position to focus upon. |
 |
| ST-600M Hardware |
