Color STN-LCD process flow and our product

Process flow
Our product

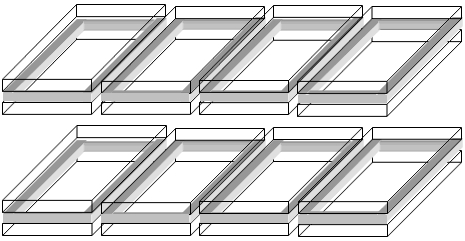

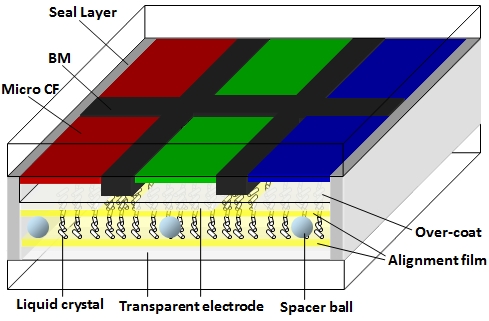

Device structure




Draw up CAD data


Front plate process flow

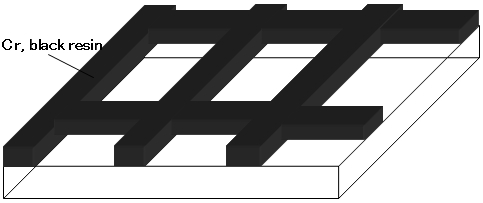

Form BM(black matrix)



Measure and inspect after development

Measuring • AOI inspection system gST seriesh

Repair after patterning of BM film
Repair system gRepair Visionh

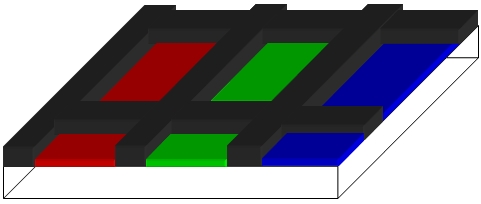

Form RGB colored layer


Measure and inspect after development
Measuring • AOI inspection system gST seriesh

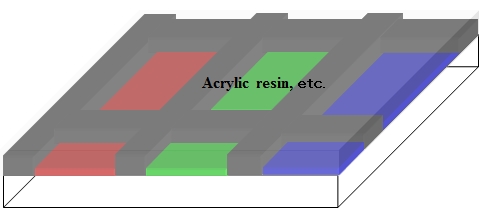

Form over-coat layer

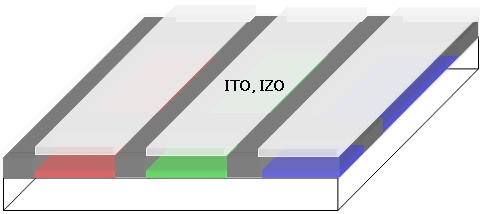

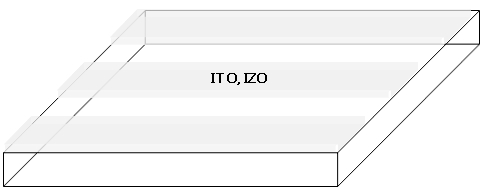

Form transparent electrodes




Measure and inspect after development of photo-resist and patterning of ITO film

Measuring • AOI inspection system gST seriesh

Repair after patterning of ITO film
Repair system gRepair Visionh

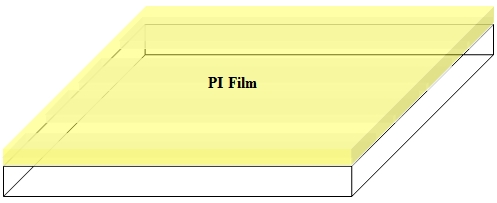

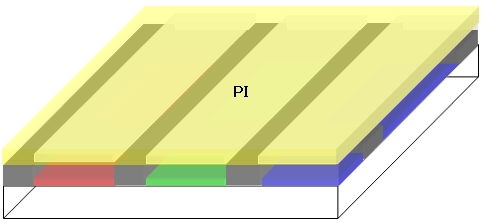

Form alignment film and rub




Rear plate process flow

Form transparent electrodes




Measure and inspect after development of photo-resist and patterning of ITO film

Measuring • AOI inspection system gST seriesh

Repair after patterning of ITO film
Repair system gRepair Visionh


Form alignment film and rub

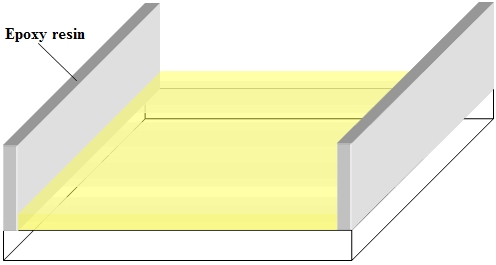

Form seal layer

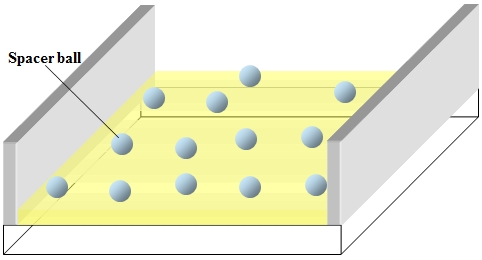

Scatter spacer balls



LC cell process flow

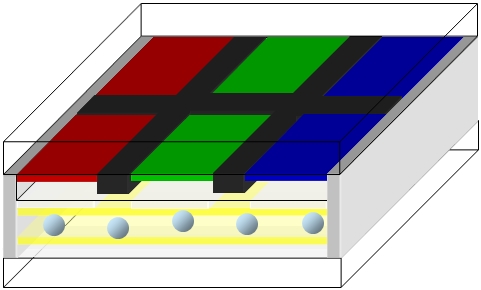

Assemble both substrates

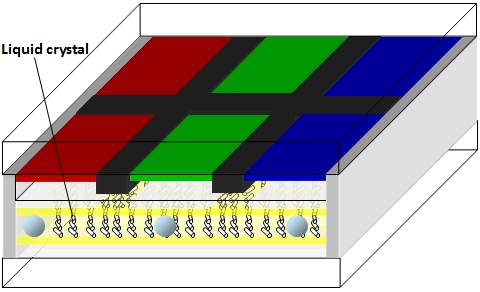

Fill LC material
